CKAN architecture

The GDI platform extends CKAN, an open-source data catalogue platform, with custom plugins for DCAT-AP 3 support, OIDC authentication, and harvesting.

CKAN extension structure​

Key components of the ckanext-gdi-userportal extension include:

ckanext-gdi-userportal/
├── ckanext/
│   └── gdi_userportal/
│       ├── plugin.py               # Main plugin implementation
│       ├── scheming/               # Schema definitions
│       │   └── schemas/
│       │       └── gdi_userportal.json  # DCAT-AP 3 schema
│       ├── templates/              # Jinja2 templates
│       ├── auth.py                 # Authentication logic
│       ├── validators.py           # Field validators
│       └── helpers.py              # Template helper functions
├── setup.py                        # Python package config
└── test/                           # pytest tests

Key concepts​

  • IPlugin interface: CKAN extensions implement the IPlugin interface to hook into CKAN's core functionality.
  • Scheming extension: GDI uses ckanext-scheming to define custom metadata schemas in JSON/YAML format.
  • Templates: Jinja2 templates override CKAN's default UI.
  • Validators: Custom validators ensure data quality for metadata fields.

Database structure​

Understand CKAN's PostgreSQL database schema to develop extensions that interact with dataset metadata and harvesters.

Dataset tables​

In demo schema ckan_ckan_dataplatform_nl table package, columns are core fields of CKAN, and package_extra for every other field. Every field which extends the core schema lands in the extra table.

The Scheming extension of Civity allows more flexibility for managing extra fields than CKAN core default functionality, but still such a field is converted to a string and lands in the extra table.

It is possible to write a mapper to and map all the extra fields. For DCAT there is an official extension:
https://github.com/ckan/ckanext-dcat#json-dcat-harvester It is compatible with DCAT-AP v1.1 and 2.1

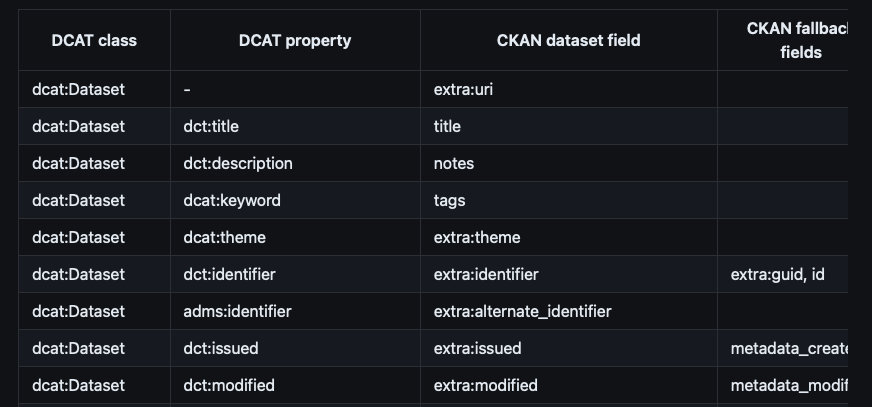

Database mapping

Harvester tables​

In the database, the following tables are dedicated to store harvester-related information:

  • harvest_source - harvested sources are defined
  • harvest_object - the table where all the objects from a source are saved. Data from a source are stored in harvest_object.content and from there will be converted to a CKAN dataset.

Harvesters are also saved to the package table of type harvest.

After changing something in the database directly, trigger re-indexing in Solr via search-index rebuild of CLI.
